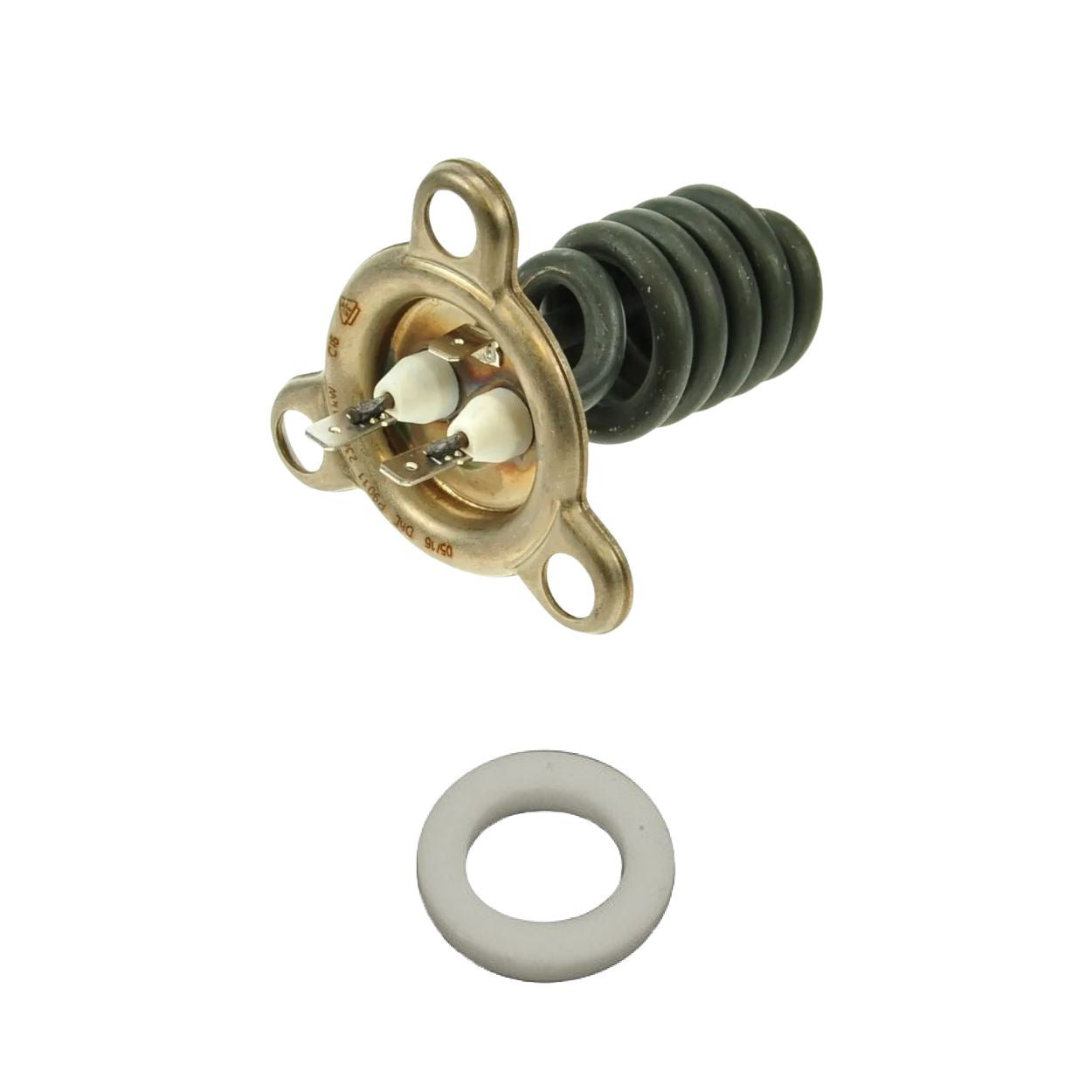

ECM Profitec Heating Element 230V 1000W Incoloy® 800

ECM / Profitec Heating Element 1000W 230V incl. Gasket & Teflon Discs

What makes this heating element special?

This current original heating element from ECM and Profitec replaces the previous 1200W version and is now used in many current ECM and Profitec models.

With us, you receive the heating element directly including the matching heating gasket and Teflon discs. Since both components should always be replaced when changing the heating element, you save additional orders and get all necessary parts for a professional repair in one set.

Made from high-quality INCOLOY 800, a nickel-iron-chromium alloy, the heating element offers excellent resistance to high temperatures, oxidation, and long-term material stress.

---

Who is this heating element suitable for?

This heating element is ideal for owners of ECM and Profitec dual boilers or single-circuit machines where:

• the machine no longer heats up

• the heating element is defective

• the boiler no longer holds temperature

• a major maintenance is being performed

• an older 1200W heating element needs to be replaced

---

Our assessment from workshop and service

This heating element has become one of the most common spare parts for modern ECM and Profitec models.

Particularly important is the new design without a thermostat opening. ECM now uses a separate 104°C thermostat, which is screwed above the boiler. This simplifies the design and increases reliability.

In our workshop, we generally recommend always replacing the gasket and Teflon discs when changing the heating element. That’s why we supply the heater as a practical complete set.

---

Advantages

✓ Original ECM / Profitec spare part

✓ Latest 1000W version

✓ Replaces the previous 1200W version

✓ Includes heating gasket

✓ Includes Teflon discs

✓ High-quality INCOLOY 800 alloy

✓ Excellent temperature resistance

✓ Ideal for professional repairs

---

Technical Data

Heating Element

• Voltage: 230 Volts

• Power: 1000 Watts

• Design: 2-pole

• Immersion Depth: approx. 70 mm

• Hole Distance: 57 mm

• Flange Diameter: 54 mm

Material

• INCOLOY 800

• Nickel-Iron-Chromium Alloy

• High Temperature Resistance

• High Corrosion Resistance

Scope of delivery

• Heating Element 1000W

• Heating Gasket

• Teflon Discs

---

Compatible Machines

ECM

• ECM Classika PID

• ECM Classika II

• ECM Puristika

• ECM Synchronika

• ECM Synchronika II

• ECM Controvento (coffee boiler)

• ECM Controvento Due

• ECM Controvento brew boiler

Profitec

• Profitec Pro 300 (steam and hot water boiler)

• Profitec Pro 600 (coffee boiler)

• Profitec Pro 600 (steam boiler)

• Profitec Pro 700 (coffee boiler)

• Profitec Drive (coffee boiler)

• Profitec Move (steam boiler)

---

Important note on the new version

The previous 1200W version was replaced by this new 1000W version.

In the new version, the following is omitted:

• the opening for the adjustable thermostat

• the previous thermostat

Instead, a separate 104°C thermostat is screwed above the boiler.

Please note:

• The thermostat is not included in the delivery.

• The cables to the new thermostat must be extended.

• This upgrade corresponds to the current ECM factory solution.

---

Why are the Teflon washers needed?

ECM and Profitec install Teflon washers on the heating lugs to prevent them from warping when tightening the screws.

Together with a new heating gasket, this achieves an optimal surface seal and significantly reduces the risk of leaks.

---

Frequently Asked Questions (FAQ)

Does this heater replace the old 1200W version?

Yes. ECM and Profitec have replaced the previous 1200W version with this current 1000W version.

Is the heating gasket included?

Yes. At Barista Fix, you receive the matching gasket directly included.

Are the Teflon washers included?

Yes. The Teflon washers required for proper installation are included in the delivery.

Is the thermostat included?

No. The new 104°C thermostat must be ordered separately.

Why is INCOLOY 800 used?

This material offers excellent temperature resistance and a significantly longer service life than conventional heating materials.

---

Comparison to alternatives

Many dealers only supply the heating element.

At Barista Fix, you receive the heater directly including gasket and Teflon washers. This way, you immediately have all the components necessary for the repair and avoid unnecessary reorders.

---

Application examples

• Replacement of a defective boiler heater

• Upgrade to the current ECM version

• Repair of dual boiler machines

• Resolution of heating issues

• Professional workshop repairs

---
